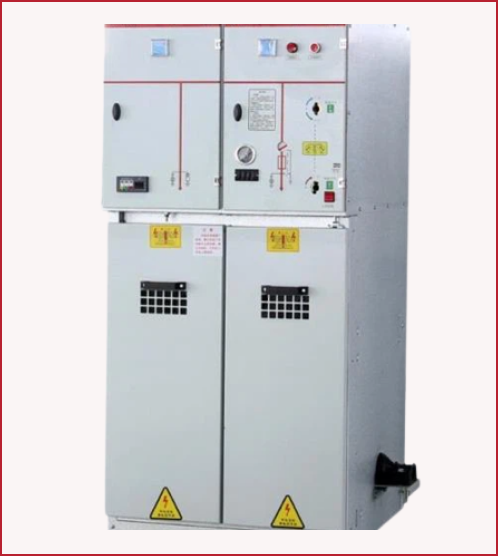

Steema Transformers and Electricals (U) Ltd. Advanced 33kV Ring Main Unit (RMU) Switchgear Panels for Reliable Medium-Voltage Power Distribution in Uganda
Steema Transformers and Electricals (U) Ltd. offers a range of advanced and dependable 33kV Ring Main Unit (RMU) Switchgear Panels, engineered for efficient and secure power distribution in three-phase AC systems operating at a rated voltage of 33kV and a frequency of 50Hz across Uganda. Our 33kV RMUs are ideally suited for ring network power supply and radial distribution systems, providing effective solutions for cable line sectionalizing and branch connections in medium-voltage networks.
Our intelligent-type RMUs can be equipped with SF6 gas-insulated switchgear, ensuring a compact and reliable design. Where project requirements dictate, we can integrate advanced Feeder Terminal Units (FTUs) to provide comprehensive distribution automation capabilities, including remote signaling, telemetry, remote control, and fault current detection. These features make Steema’s 33kV RMUs an excellent choice for enhancing the intelligence and efficiency of power distribution networks in urban and industrial areas throughout Uganda.
Key Features
Modular and Expandable Design
The assembly-type cabinet framework offers a stable, reliable, and easily expandable structure, allowing for flexible configuration as a ring network unit and supporting various connection schemes to adapt to diverse 33kV network architectures in Uganda.
Compact Footprint and Easy Installation
Designed for efficiency and ease of use, our 33kV RMUs feature a compact size, are relatively lightweight, and require minimal installation space, making them suitable for deployment in various substation and distribution environments across Uganda.
Secure and Compartmentalized Construction
The unit incorporates separate compartments for busbars, switching devices, and control equipment, ensuring a high level of operational safety and reliability within the 33kV system.
Robust Grounding System
Comprehensive grounding of the cabinet and all metallic components guarantees the safety of operating and maintenance personnel.
Versatile Switching Technology
Our 33kV RMUs are compatible with high-performance load break switches and vacuum circuit breakers (VCBs) specifically designed for 33kV applications, offering flexibility in selecting the optimal switching technology for different network requirements.
Reliable Interlock Mechanisms
Incorporating advanced mechanical interlock systems that meet stringent safety standards, including comprehensive interlocking to prevent incorrect operation and ensure the safety of the 33kV network.

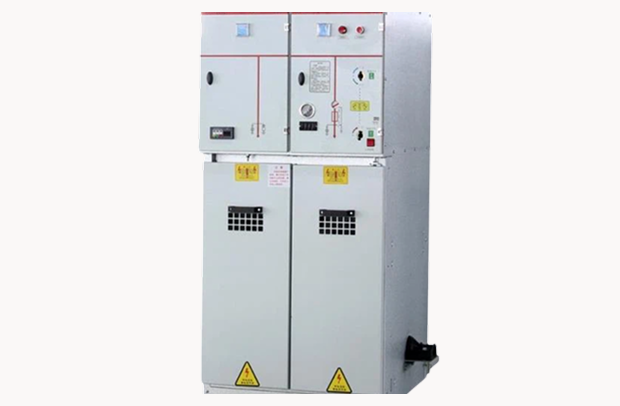

Operating Environment
Operating Environment for Steema's 33kV Ring Main Unit Switchgear Panels:
- Air Temperature: Maximum +40℃; Minimum -25℃ (suitable for the climate in Kampala and most of Uganda).
- Humidity: Monthly average humidity ≤95%; Daily average humidity ≤90%.
- Altitude: Maximum installation altitude up to 2000m (covers the majority of locations in Uganda).
- Ambient Air: Free from apparent pollution by corrosive and flammable gases, vapors, etc.
- Vibration: Designed to withstand typical operational vibrations without adverse effects.

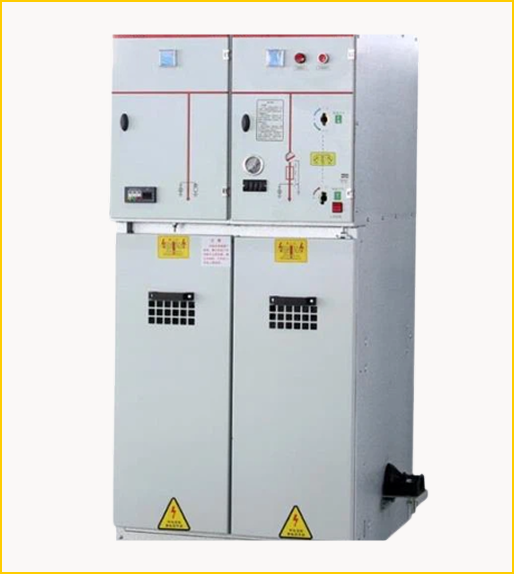

Characteristics of Steema's
33kV Ring Main Unit Switchgear Panels:
The enclosure, doors, and upper chambers of our 33kV RMUs undergo a thorough surface treatment process, providing a durable and uniform finish suitable for the environmental conditions in Uganda. All cabinets are equipped with a main grounding busbar for effective and reliable grounding. Metal components, including grounding switches and interlocking mechanisms, are securely connected to the grounding busbar using copper braids for optimal conductivity and safety.
Gas-insulated models feature reliable pressure relief mechanisms to manage internal pressure in the event of faults. The upper board is designed for easy access to busbar connections. The upper auxiliary devices chamber offers ample space for installing control terminals and other necessary components. The design facilitates efficient implementation of relay protection schemes for the 33kV network.
Our 33kV RMUs incorporate dependable interlocking systems between load break switches/circuit breakers and grounding switches, as well as between the grounding switch and the enclosure doors, ensuring safe and sequential operation to prevent faults and enhance the overall safety of the 33kV power distribution system.
Steema Transformers and Electricals (U) Ltd., located in Kampala, Uganda, is your reliable partner for high-quality and advanced 33kV Ring Main Unit Switchgear Panels.
