Product Description

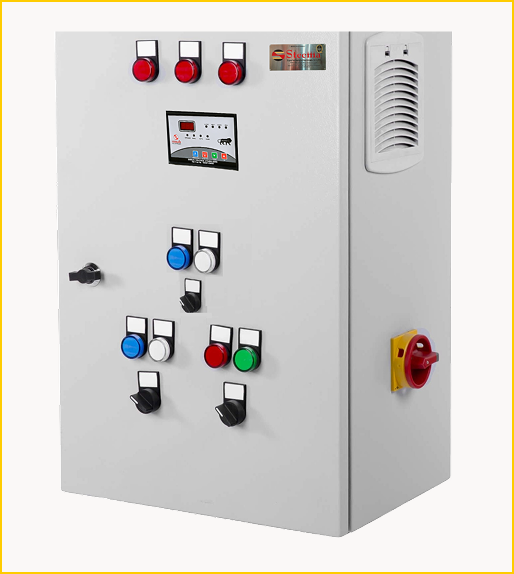

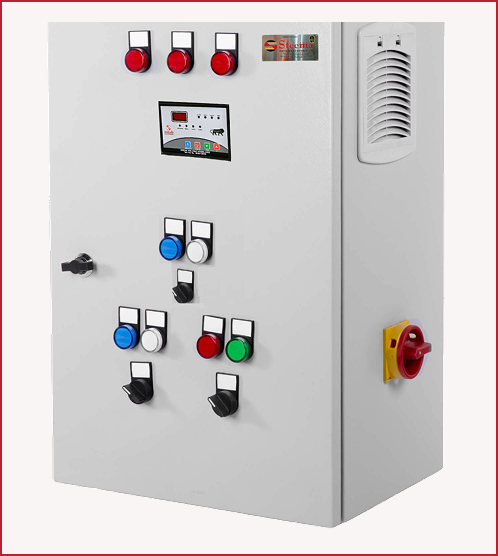

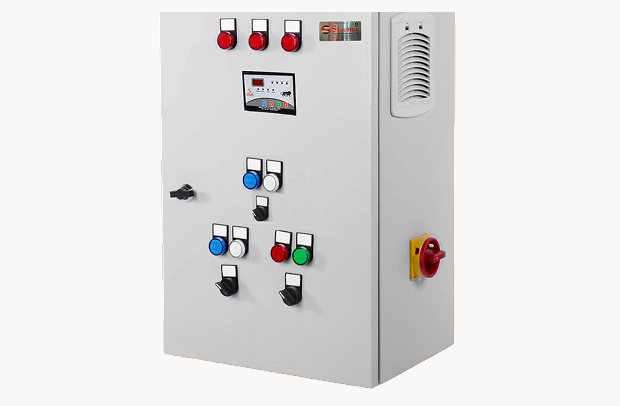

Low Voltage Panels, or Feeder Pillars, are specialized electrical enclosures designed to house essential components for the safe and efficient distribution of electricity at low voltage levels. These panels play a vital role in urban and rural power grids, industrial facilities, commercial complexes, and residential areas, acting as a crucial interface between the main power supply and individual consumer connections or sub-distribution points. They are typically freestanding, weather-resistant metal cabinets built to withstand challenging outdoor environments.

1. The Structure of a Low Voltage Panel (Feeder Pillar)

Our Low Voltage Panels are engineered for durability, safety, and performance, incorporating the following key structural and electrical components:

• Enclosure: The robust outer casing of the Feeder Pillar is designed to provide maximum protection for the internal electrical components against environmental factors such as dust, moisture, UV radiation, and physical damage. These enclosures are typically constructed from high-grade materials like galvanized steel or stainless steel, with IP (Ingress Protection) ratings suitable for outdoor use. They feature secure locking mechanisms, reinforced doors, and weather-sealed gaskets to prevent unauthorized access and ingress of contaminants.
• Main Incoming Section: This section manages the power supply entering the feeder pillar. It typically includes:
  • Main Isolator/Circuit Breaker: For safe disconnection of the entire panel from the incoming power supply. We incorporate high-quality breakers from ABB, Schneider, Siemens, and L&T (Lauritz Knudsen) to ensure robust protection and reliable operation.
  • Metering Equipment: For accurate measurement of incoming power parameters such as voltage, current, and energy consumption.
• Outgoing Feeder Sections: These sections distribute power to various loads or sub-distribution points. Each outgoing feeder typically includes:
  • Feeder Circuit Breakers/Fuses: For protection against overloads and short circuits in individual outgoing lines. We utilize reliable breakers from ABB, Schneider, Siemens, and L&T (Lauritz Knudsen) for optimal circuit protection.
  • Distribution Busbars: Solid conductive bars (copper or aluminum) that provide a common electrical connection point for the incoming and outgoing circuits, facilitating efficient power distribution.
  • Cable Glands and Terminations: Secure and weather-tight connections for incoming and outgoing cables, ensuring electrical integrity and safety.
• Internal Wiring and Connections: High-quality, appropriately sized electrical cables are used for internal connections, meticulously routed and terminated to ensure safety, minimize voltage drop, and prevent overheating.
• Earthing/Grounding System: A comprehensive earthing system is integrated to ensure electrical safety by providing a low-resistance path for fault currents, protecting personnel and equipment.
• Labels and Markings: Clear, durable labels and schematic diagrams are provided to identify circuits, components, and warning signs, facilitating safe operation and maintenance.

2. Functions and Operations

Our Low Voltage Panels (Feeder Pillars) are designed to perform several critical functions within the power distribution network:

• Power Distribution: They efficiently distribute electrical power from a single incoming source to multiple outgoing circuits, feeding various consumers or sub-networks.
• Circuit Protection: Integrated circuit breakers and fuses provide essential protection against electrical faults such as overloads and short circuits, preventing damage to downstream equipment and ensuring safety.
• Isolation and Maintenance: They allow for the safe isolation of individual circuits or the entire panel for maintenance, repair, or expansion without disrupting the entire network.
• Metering: Many feeder pillars incorporate metering devices to monitor and record power consumption, which is crucial for billing and load management.
• Load Management: In some configurations, they facilitate basic load balancing and management within the localized distribution area.
• Public Safety: By providing a robust and secure enclosure for live electrical components, they enhance public safety and prevent accidental contact.
