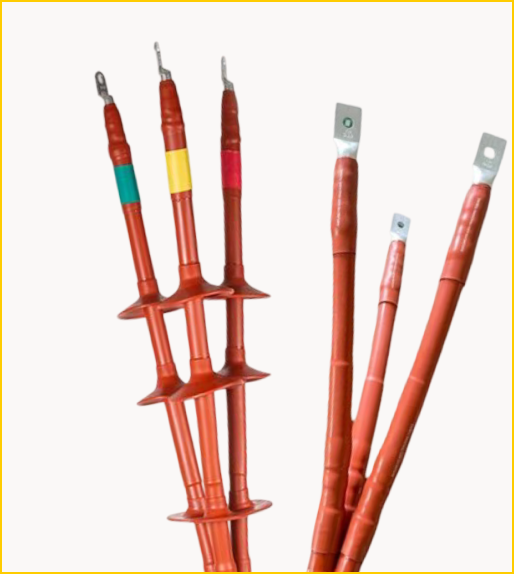

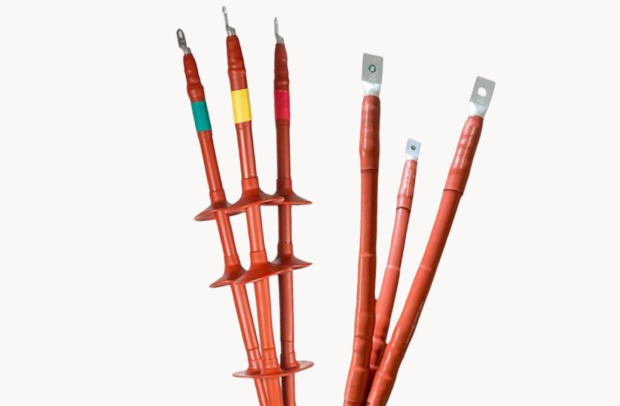

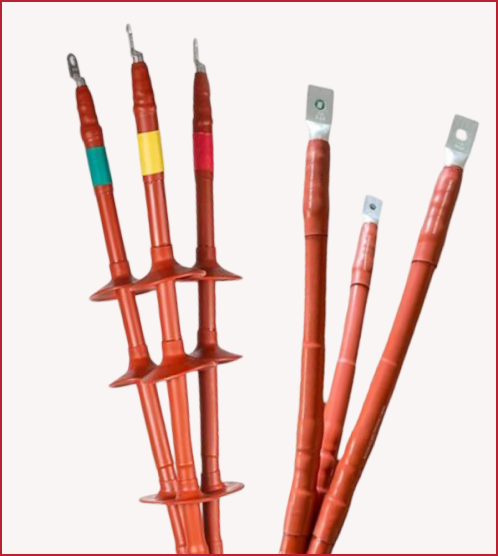

Steema Heat Shrink Cable Termination Kits (11kv & 33kv)
At Steema Transformers & Electricals (U) Ltd, we specialize in providing high-quality Heat Shrink Cable Termination Kits for both indoor and outdoor applications, ensuring reliable and durable connections for your power distribution networks. Our kits are meticulously designed for 11kV and 33kV systems, and specifically adapted for 95mm² cable cross-sections
Product Overview
- Models:
- STEEMA-11kV-Outdoor-Termination-95sqmm
- STEEMA-11kV-Indoor-Termination-95sqm
- STEEMA-33kV-Outdoor-Termination-95sqmm
- STEEMA-33kV-Indoor-Termination-95sqmm
- Adapter Max Size: 95mm² (Specifically for 95mm² cables)
- Material: High Molecular Polymer
- Application: Cable Termination (Indoor and Outdoor types)
- Applicable Cables: XLPE, PVC, EPR, and other polymer insulated cables.
- Execution Standards: IEC60502.4, GB/T12706.4
STEEMA Heat Shrink Cable Accessories Product Features
Our heat shrink cable accessories are engineered for superior performance, ease of use, and long-term reliability:
- Advanced Material Composition: Composed of a unique blend of various material components such as polyethylene, ethylene vinyl acetate (EVA), and ethylene propylene rubber, ensuring optimal electrical and mechanical properties.
- High Mechanical Strength: Designed to offer robust mechanical strength, making them suitable for a wide variety of power cables and demanding installation environments.
- Strong UV and Weather Resistance (Outdoor Kits): Our outdoor kits provide excellent protection against harmful UV radiation and harsh weather conditions, ensuring long-term reliability in exposed environments.
- Excellent Electrical Properties: Possesses outstanding insulation properties, coupled with high corona resistance and tracking resistance, guaranteeing safe and efficient operation.
- Simple and Reasonable Structure: Features a straightforward and well-engineered design for straightforward and efficient application.
- Built-in Stress Control: Incorporates internal stress control mechanisms for uniform electric field distribution, enhancing cable longevity and performance.
- Versatile Compatibility: Suitable for both copper and aluminum cables.
- Flexible Lug Compatibility: Compatible with both crimp lugs and mechanical lugs, offering installation flexibility.
- Quick and Simple Installation: Designed for fast assembly and simple installation, significantly reducing installation time and labor costs on site.
Electrical Performance Parameters of STEEMA Heat Shrink Cable Accessories (for 95mm² cables)
Our products undergo rigorous testing to ensure compliance with the highest electrical performance standards:
| Items | 11kV Termination Kit Parameter | 33kV Termination Kit Parameter |
|---|---|---|
| Cable Rated Voltage | 6/10kV (11kV), 8.7/15kV (11kV) | 21/35kV (33kV), 26/35kV (33kV) |
| Frequency Withstand Voltage (AC) | 39kV/5min | 117kV/5min |
| Partial Discharge | 15kV < 10pC | 45kV < 10pC |
| Impulse Voltage | 105kV | 200kV |
| Heating Cycles Test in Air | 22kV, 60 cycles in total | 65kV, 60 cycles in total |
| Applicable Cable Cross Section | Specifically for 95mm² | Specifically for 95mm² |
STEEMA Heat Shrink Cable Accessories Product Introduction
Steema Transformers & Electricals (U) Ltd offers comprehensive heat shrinkable termination solutions suitable for single-core/three-core XLPE, EPR, and other polymer insulated cables.
- For 11kV Systems: Our kits are perfectly suited for the termination of 6/10kV and 8.7/15kV (effectively 11kV system voltage) cables.
- For 33kV Systems: Our kits are ideal for the termination of 21/35kV and 26/35kV (effectively 33kV system voltage) cables.
These kits provide a secure, long-lasting, and environmentally sealed connection, critical for the reliable operation of your power infrastructure.
Product Execution Standards: IEC60502.4, ensuring compliance with international and national quality benchmarks.
