Auto Recloser
11kv

The STEEMA+ type auto recloser is a high-performance switchgear meticulously sealed with SF6 gas, boasting an IP67 class rating for superior environmental protection.

Our STEEMA+ type auto recloser is DESIGNED for critical electricity supply points where reliability is paramount. This includes vital fields such as: gas/oil/mine facilities, hospitals, government/military areas, and other important buildings where uninterrupted power is essential.

A key innovation of the STEEMA+ Auto recloser is its equipped manual closing solution, a patented design that addresses a common problem found in existing recloser brands like ABB, Schneider, Eaton, Siemens, Hubbell, Noja, and Jinkang. While these brands often offer only a normal recloser solution, their designs typically do not provide a solution for manual closing when electric power is unavailable. Our STEEMA+ provides this crucial capability.

The STEEMA+ auto recloser is a fast-switching switchgear, standardly configured with a magnetic actuator and a manual closing and opening/locking device, along with a maximum of 6 voltage sensors.

Our STEEMA+ auto recloser is fully compliant with international standards IEC62271-111 and ANSI/IEEE C37.60.

STEEMA Feeder Recloser General Specification

  • Steema Transformers & Electricals (U) Ltd strives to bring our customers the latest technology, competitive pricing, and best service for automatic distribution solutions.
  • The STEEMA series automatic circuit reclosers are ideal for use on overhead distribution lines as well as distribution substation applications for the 11kV voltage class at 50/60Hz power systems. Our 11kV units can handle rated currents up to 1250A.
  • The STEEMA series automatic circuit reclosers integrate comprehensive functions including control, protection, measurement, communication, fault detection, and on-line monitoring of closing or opening operations.

Service Environment

Our reclosers are built to perform reliably in demanding conditions:

  • Air temperature: Maximum temperature: +85℃; Minimum temperature: -45℃
  • Humidity: Monthly average humidity 95%; Daily average humidity 90%.
  • Altitude above sea level: Maximum installation altitude: 2500m or higher.
  • Ambient air: Not apparently polluted by corrosive and flammable gas, vapor, etc. No frequent violent shake.

Optional Relay Protection & Logics for User Choice:

Our reclosers come with a comprehensive suite of protection features:

  • Instantaneous over-current protection.
  • Timing over-current protection.
  • Negative sequence over-current protection.
  • Directional over-current protection(*).
  • Over-voltage protection / Under voltage protection
  • Programmable protection relay curves: total 10 ANSI/IEC curves.
  • Cold load pickup protection TCC + Hot line tag.
  • Earth protection (EF/SEF) + Zone Sequence Co-ordination.
  • More relay functions can be customized.

Optional Communication Protocols & I/O Port for User Choice:

For seamless integration and remote management:

  • RS-232 and RS-485 ports supporting.
  • DNP3.0 communication protocol support(*).
  • Modbus communication protocol is optional(*).
  • IEC 60870-5-101 communication protocol support.
  • IEC 60870-5-104 communication protocol support(*).
  • The recloser can communicate through GPRS (Or GSM) modem with English or Specified language (*).

Optional Functions for User (Monitoring and Measurement):

  • Rated currents, System phase current.
  • Rated voltages, System phase voltage & secondary low voltage power supply voltage.
  • Frequency, active power (kWh), reactive power (kV arh), power factor.

Events Recording Function:

For detailed operational history and fault analysis:

  • SOE (Sequence of Events) 10000 operations record.
  • Fault record and normal operation record

The Recloser Tank Feature:

  • The Vacuum recloser tanks are manufactured from 304# grade stainless steel and are powder-coated a light grey colour for enhanced durability and aesthetics. The whole recloser boasts an IP67 protection class, and is equipped with an auxiliary plug to connect with the recloser controller by a control cable, with a diameter of Max 22mm and a standard length of 6 meters (8 meters available for special requirements).
  • Our STEEMA reclosers are designed to provide performance and service for more than 20 years under heavy-duty circumstances, ensuring a long and reliable operational life.
  • Steema Transformers & Electricals (U) Ltd is your trusted partner for high-quality 11kV Auto Reclosers. How can we assist you further with your power distribution needs?

Offering With Optional Classes for Rated Current Range:

  • Type STEEMA12: Specifically for 11kV systems, with ratings of 630A, 16 kA up to 1250A, 20kA.

Installation Options:

  • Single phase & Three phase configurations are available for different grid applications.

STEEMA+ Auto Recloser Offering (11kV Specifics):

  • Voltage Rating: Specifically tailored for 11kV systems.
  • Current Rating: Available from 630A to 1250A.
  • Short Circuit Breaking: Capable of 16kA up to 25kA.

Optional Reclosing Interval for User Pre-program:

  • Reclosing times setting support.
  • Dead time setting support.

Time-Overcurrent Curves

  • The time-overcurrent relay curves in our STEEMA reclosers conform to IEEE C37.112-1996 IEEE Standard Inverse-Time. This provides precise and reliable tripping characteristics for effective fault clearance.

Outline of Recloser:

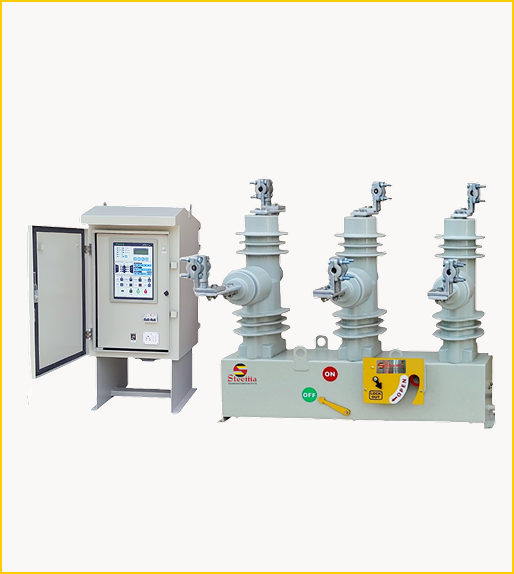

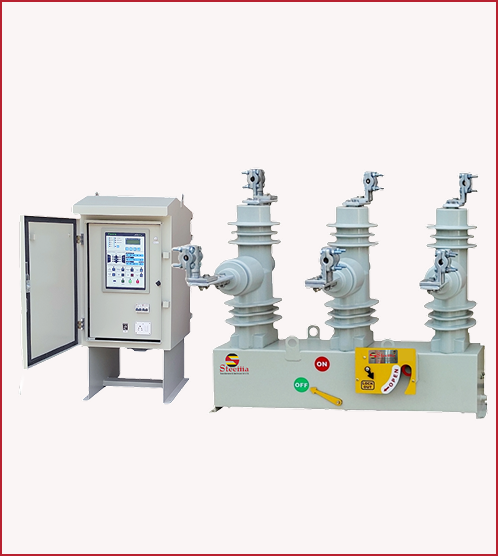

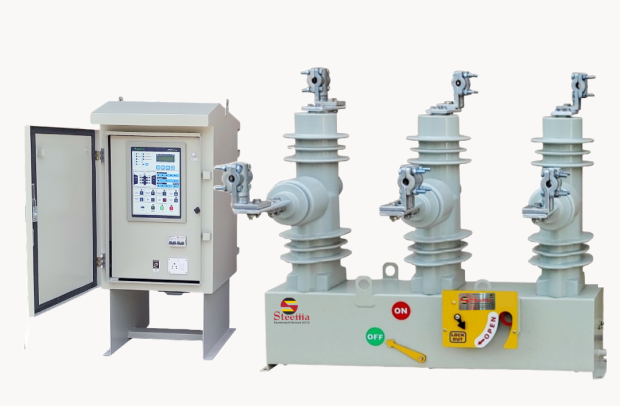

  • The STEEMA series vacuum recloser is primarily combined with an integrated terminal, current transformer, permanent magnetic actuator, and its dedicated recloser controller.
